Are you looking for a 3.5-inch QVGA 320*240 TFT LCD display?

Since 2019, this LCD panel is in bad shortage supply.  We invested to tool up a new mask with LCD original manufacturer and started to mass production now.  We can guarantee stable supply with good price


For more information, please contact me at Helen@kingtechlcd.com


Item

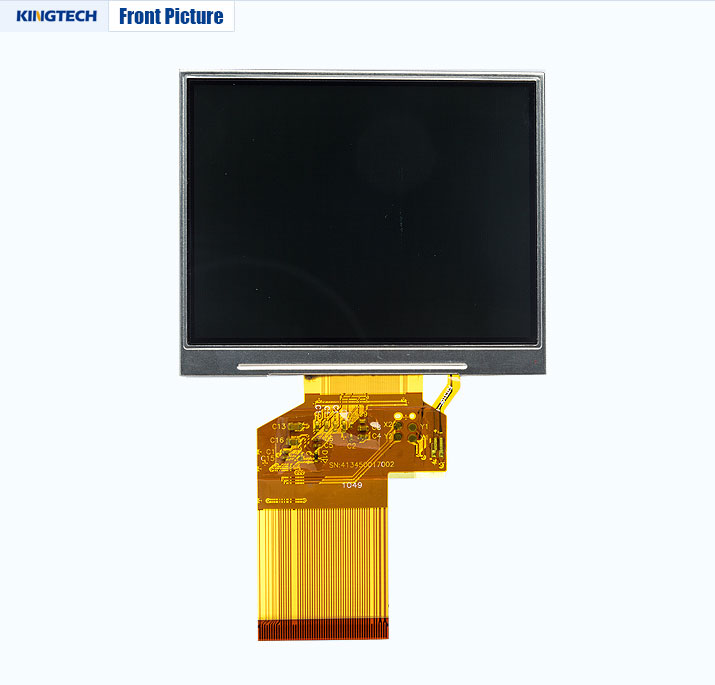

3.5 inch QVGA TFT LCD display

Model No

PV03501H0154C

Resolution

320*240

Outline Dimension

76.84*63.84*3.15

Active Area(mm)

70.08*52.56

Viewing Angle

12 O’CLOCK

Technology type

TRANSMISSIVE

Interface

RGB

Driving IC

HX8238D

Brightness

300nits

Life-time

50000h

Operating Temperature

-20 to +70℃

Storage Temperature

-30 to +80℃

Touch screen

Support capacitive/ resistive touch
